Cell-type-specific subtyping of epigenomes improves prognostic stratification of cancer

Luo, Qi; Teschendorff, Andrew E.

doi:10.1186/s13073-025-01453-5

Research
Open access
Published: 03 April 2025

Cell-type-specific subtyping of epigenomes improves prognostic stratification of cancer

Qi Luo¹ &
Andrew E. Teschendorff¹

Genome Medicine volume 17, Article number: 34 (2025) Cite this article

1078 Accesses
1 Altmetric
Metrics details

Abstract

Background

Most molecular classifications of cancer are based on bulk-tissue profiles that measure an average over many distinct cell types. As such, cancer subtypes inferred from transcriptomic or epigenetic data are strongly influenced by cell-type composition and do not necessarily reflect subtypes defined by cell-type-specific cancer-associated alterations, which could lead to suboptimal cancer classifications.

Methods

To address this problem, we here propose the novel concept of cell-type-specific combinatorial clustering (CELTYC), which aims to group cancer samples by the molecular alterations they display in specific cell types. We illustrate this concept in the context of DNA methylation data of liver and kidney cancer, deriving in each case novel cancer subtypes and assessing their prognostic relevance against current state-of-the-art prognostic models.

Results

In both liver and kidney cancer, we reveal improved cell-type-specific prognostic models, not discoverable using standard methods. In the case of kidney cancer, we show how combinatorial indexing of epithelial and immune-cell clusters define improved prognostic models driven by synergy of high mitotic age and altered cytokine signaling. We validate the improved prognostic models in independent datasets and identify underlying cytokine-immune-cell signatures driving poor outcome.

Conclusions

In summary, cell-type-specific combinatorial clustering is a valuable strategy to help dissect and improve current prognostic classifications of cancer in terms of the underlying cell-type-specific epigenetic and transcriptomic alterations.

Background

The Cancer Genome Atlas (TCGA) [1] has transformed our molecular understanding of cancer and proposed many novel clinically relevant cancer classifications [2,3,4,5,6,7]. These cancer taxonomies have, by and large, been derived from omic profiles generated in bulk-tissue, encompassing mixtures of many different cell types. Whereas classifications based on somatic mutations and copy-number alterations reflect the underlying patterns of genomic alterations in tumor cells, classifications derived from bulk transcriptomic and epigenetic data are subject to potential confounding by cell-type heterogeneity (CTH) [8,9,10]. Indeed, it is now well-known that inter-individual variation in tumor-tissue composition is substantial [9,10,11,12] and that this can strongly influence tumor classification [9, 13,14,15]. Although these classifications have often been shown to be of prognostic and clinical relevance (e.g., immune-reactive vs immune-cold tumors) [2, 16], it is important to note that much of this inter-individual variation in cell-type composition (e.g., immune-cell infiltration) is also present within tissues of a healthy population [11, 12, 17]. At the epigenetic level, obtained cancer classifications often reflect cell of origin [9, 18], but are not necessarily informative of the epigenetic changes in the tumor cell-of-origin. In general, CTH implies that it is much harder to pinpoint whether specific cancer-associated transcriptomic or epigenetic changes are happening in the tumor cells and not in tumor stroma. It follows that most of the transcriptomic and epigenetic cancer taxonomies proposed to date do not necessarily reflect cancer subtypes defined by underlying cell-type-specific molecular changes. The need to explore novel cancer classifications in terms of their cell-type-specific transcriptomic and epigenetic changes is critical for an improved understanding of how distinct cancer subtypes emerge in relation to the functional changes that happen in tumor cells and in the various types of tumor-associated stromal cells.

While single-cell technologies, notably scRNA-Seq [19], snRNA-Seq [20], and scATAC-Seq [21], are yielding novel insights into the tumor-stroma interface at cell-type resolution [22,23,24,25,26], as well as refining existing tumor classifications [15], single-cell studies on their own are limited to profiling relatively small numbers of tumor samples, which prevents us from capturing the extensive inter-subject clinical heterogeneity that we know exists. Indeed, at present, small-scale single-cell studies need to be combined with large-scale bulk-tissue datasets like the TCGA/ICGC in order to refine cancer taxonomies, as shown recently in the context of colorectal cancer [14, 15] or breast cancer [27,28,29]. Moreover, for certain data types such as DNA methylation, profiling of single-cells, even in very modest numbers of clinical samples, is still not feasible [30,31,32].

Thus, here we propose a novel strategy, based on the concept of “cell-type-specific combinatorial clustering” (CELTYC), to refine the molecular classification of cancer types. The key innovative idea behind this proposal is to perform clustering over the features (CpGs/genes) displaying cancer-relevant cell-type-specific variation, which results in cancer subtypes that reflect the changes in individual cell types, and which are hence not merely driven by variations in cell-type composition. We evaluate the above CELTYC strategy in the context of DNA methylation (DNAm) data, which is less noisy than mRNA expression, allowing for more accurate estimation of cell-type fractions and cell-type deconvolution. The ability to estimate cell-type fractions with a reasonably high accuracy is indeed a critical step in our proposed strategy. By applying CELTYC to liver hepatocellular and kidney renal cell carcinoma, we reveal novel biologically and clinically relevant tumor classifications that significantly outperform existing ones in terms of associations with clinical outcome, highlighting the importance of cell-type-specific subtyping of cancer.

Methods

Simulation models

To provide a rationale for the CELTYC procedure, we devised two separate simulation models. In one model, we considered mixtures of 3 sorted immune-cell subtypes (139 neutrophils, 139 monocytes, and 139 CD4 + T cells) using Illumina 450k data from BLUEPRINT [33, 34]. Mixture weights, i.e., the cell-type fractions, were chosen from realistic estimates by applying EpiDISH [35] to the 656 whole blood Illumina 450k DNAm data from Hannum et al. [36, 37]. Because the simulated mixtures only contain 3 cell types, estimated fractions for all lymphocytes were added together to yield the weight for the CD4 + T cell component. Likewise, the eosinophil and neutrophil fractions were added to yield the neutrophil/granulocyte component. We generated a total of 139 mixtures, 70 representing “controls” and 69 representing “disease.” Before mixing the DNAm profiles of sorted cells together, we selected 100 random CpGs with ultra-low DNAm (beta < 0.2) across all 139 monocyte samples and high DNAm (beta > 0.8) across the other two (Neu + CD4T). For the 69 cases, we then altered DNAm of the monocyte profiles at these 100 loci by drawing them from a beta-distribution with parameters a = 8, b = 2, i.e., from a beta-distribution with mean 0.8. Thus, this is a scenario of a relatively big effect size where loci undergo on average > 0.6 DNAm changes. For the 139 simulated mixture dataset, we then applied SVD and hierarchical clustering, as well as CellDMC [38] with estimated cell-type fractions using EpiDISH to infer cell-type-specific DMCs (DMCTs).

The second simulation model simulates lung-tissue mixtures by mixing together sorted bronchial epithelial cells (BECs, n = 108) (Magnaye et al. [39, 40]) from 71 adult children with asthma and 37 controls, with the 139 monocytes, 139 neutrophils and 139 CD4T cells from BLUEPRINT [33, 34]. The Magnaye et al. raw idat files were downloaded from GEO with accession number GSE210843 and processed with R package minfi [41] to retain only probes with significant detection P values (P < 0.05) across all samples. Subsequently, type-2 probe correction was performed with BMIQ [42]. Mixture weights were determined by applying EpiSCORE’s lung DNAm reference matrix [43, 44] to the (n > 200) eGTEX EPIC DNAm dataset [45, 46] to infer realistic epithelial, granulocyte, monocyte, and lymphocyte fractions, which were then used to mix together the BECs, neutrophils, monocytes, and CD4T cells. A total of 108 mixtures were generated with case/control status determined by the asthma-status of the original 108 BEC samples. Before mixing the sorted cells together, we defined a “ground-truth” set of 1000 asthma-DMCs (FDR < 0.05) by comparing the BECs of 71 asthma cases to the 37 controls using the limma empirical Bayes framework [47, 48]. For the 108 simulated mixtures, we then applied CellDMC, estimating cell-type fractions with HEpiDISH [12], a hierarchical recursive version of EpiDISH that can estimate epithelial, stromal, and immune-cell subfractions for any tissue type. We assessed the sensitivity to detect the 1000 asthma-DMCs among CellDMC’s BEC-DMCTs. Clustering was done on the standardized residual matrix over the BEC-DMCTs after regressing out the cell-type fractions. To benchmark the CELTYC performance, we also did clustering over the top 3000 most variable CpGs.

Power calculation for in silico mixtures

The second simulation model above provides the basis for a power calculation in order to assess the sample sizes needed for CELTYC/CellDMC to work. In order to expand the simulation model to arbitrarily large sample size, we took a parametric approach where for each CpG we learned the (a,b) parameters of the beta-distribution describing the DNAm values over the 37 controls. For the 1000 ground-truth asthma DMCs, the beta-distributions over the asthma cases were also learned. We also inferred the parametric beta distributions for all CpGs in the sorted immune cell types from BLUEPRINT. Then we used the R function rbeta with the derived (a,b) parameters to construct sorted BEC, monocyte, neutrophil, and CD4T cell samples for a given number n of controls and an equal number n of asthmatic cases, where the parameters (a,b) differ between BEC cases and controls for the 1000 ground-truth DMCs, but not for the immune-cell types. The cell-type fractions (CTFs) used to generate the mixtures were drawn as before from the estimated CTFs of the 223 eGTEX lung samples (if the sample size of the mixtures is larger than 223, we sampled CTFs with replacement) [45, 46]. We then considered two different CellDMC models: the full conditional model that includes interaction terms for all cell-type fractions (as described by Zheng et al. [38]) and a marginal unconditional model where only one interaction term for one cell-type fraction (BEC) is included. These two separate models were applied to simulated mixture datasets of increasing sample size. For each sample size, the number of BEC-DMCTs (FDR < 0.05) overlapping the 1000 ground truth asthma DMCs were used to calculate sensitivity and FDR. A total of 5 Monte-Carlo runs were performed at each sample size, which was sufficient as variation between runs was not substantial.

Cell type-specific clustering (CELTYC)

CELTYC aims to subtype disease samples by taking into consideration the molecular (DNAm) changes that are specific and/or joint to different cell types in the tissue under consideration. The first step in CELTYC is to estimate the proportions of all main cell types within a tissue. For solid tissues, we use either the EpiSCORE algorithm and its associated DNAm atlas of tissue-specific DNAm reference matrices [43], or HEpiDISH [12]. For blood, we use EpiDISH [35, 49]. EpiSCORE/HEpiDISH/EpiDISH were run on BMIQ-normalized DNAm data with “RPC” method and 500 iterations. In the second step, the CellDMC algorithm is used to identify CpGs with significant cell-type-specific DNAm changes in relation to disease status, i.e., disease-associated DMCTs. Once DMCTs in each cell type have been inferred, the union of all DMCTs can be partitioned into those that are common to all cell types of interest, those that are shared between any given combination of cell types of interest, and finally those that are unique to each cell type. The third step then involves clustering the disease samples only over these different DMCT subsets, or alternatively one can use JIVE (Joint and Individual Variation Explained) [50, 51] to “cluster” over any desired number of DMCT categories. Before clustering or JIVE, we regress out cell type proportions from the original BMIQ DNAm matrix, followed by z-score standardization of the residual matrix. This results in standardized residual matrices, one for each DMCT subset, as defined earlier. Clustering and inference of optimal cluster number can then be performed over any desired DMCT subset using ConsensusClusterPlus [52]. Alternatively, any number of these residual matrices can be analyzed together using JIVE: this will extract out components of joint variation across all input residual matrices, as well as components of individual variation that are unique to each residual matrix. For instance, if we have 3 cell types (A,B,C), we may be interested in the four residual matrices defined by the 3 DMCT subsets unique to each cell type (A,B,C) and the one DMCT subset for the DMCTs common to all 3 cell types. In general, let ${R}_{All}$ denote the standardized residual matrix defined over the common/shared DMCT subset, and let ${R}_{t}$ denote the corresponding residual matrix over the DMCTs unique to cell-type t. JIVE then performs the following matrix decomposition:

$${R}_{All}={JV}_{All}+{IV}_{All}+{\epsilon }_{All}$$

$${R}_{t}={JV}_{t}+{IV}_{t}+{\epsilon }_{t} \forall t=1\dots T$$

under the constraint that $({JV)}^{T}\left(IV\right)=0$ is true for each DMCT category. In practice, JIVE works in an iterative fashion, first inferring the joint variation matrix as an SVD rank rJ approximation obtained by stacking-up together all residual matrices, i.e., by applying SVD to $R=[{R}_{All},{R}_{1},\dots ,{R}_{T}]$, subsequently estimating the individual variation (IV) matrices by performing rank ${r}_{i}$ SVD approximations to the residual matrices with the estimated joint variation removed. In the 2nd iteration, a new stacked-up matrix can be constructed by subtracting the estimated IV matrices from the residual matrices, subsequently reapplying SVD to this new stacked up matrix. We use the method implemented in R.jive [51] for automatic estimation of the ranks for the joint and individual variation matrices. Of note, in the example above of 3 cell types (A,B,C), the joint variation matrix would describe variation that is common to the shared-DMCT subset and all unique DMCT subsets, while the IV-matrices would describe variation truly unique to each DMCT subset.

Illumina DNAm datasets

TCGA

The SeSAMe [53] processed Illumina 450k beta value matrices were downloaded from Genomic Data Commons Data Portal (https://portal.gdc.cancer.gov/) with TCGAbiolinks [54,55,56]. Data was downloaded and analyzed for the following cancer types: liver hepatocellular carcinoma (LIHC) and kidney clear cell renal cell carcinoma (KIRC). We did further processing of the downloaded matrices as follows: For each cancer type, probes with missing values in more than 30% samples were removed. The missing values were then imputed with impute.knn (k = 5) [57]. Type-2 probe bias was adjusted with BMIQ [42]. Technical replicates were removed by retaining the sample with highest CpG coverage. Clinical information of TCGA samples was downloaded from Liu et al. [58].

Degerman

In the case of KIRC/ccRCC, we used an independent Illumina 450k DNAm dataset of 132 ccRCC samples and 12 kidney controls [59, 60]. Briefly, the series data matrix file and sample annotations were downloaded from GEO (GSE113501). We only selected probes with full coverage over all samples, resulting in 391,062 probes. Provided data was already adjusted for type-2 probe bias. Of the 132 ccRCC samples, 115 had clinical outcome information available. Clinical outcome was provided as non-metastic progression-free (n = 64), non-metastatic progression (n = 23), and metastatic (n = 28).

Hannum

This is a whole blood Illumina 450k DNAm dataset of 656 samples [36, 37]. Data was downloaded from GEO under accession number GSE40279 and was normalized as described by us previously [61].

eGTEX

We downloaded the Illumina EPIC DNAm dataset for lung tissue from GEO under accession number GSE213478 [45, 46]. Briefly, we downloaded the file “GSE213478_methylation_DNAm_noob_final_BMIQ_all_tissues_987.txt.gz”, which contains the already NOOB + BMIQ normalized DNAm dataset.

BLUEPRINT

We analyzed Illumina 450k DNAm data from BLUEPRINT [33, 34], encompassing 139 monocyte, 139 CD4 + T cell, and 139 neutrophil samples from 139 subjects. This dataset was processed as described by us previously [62].

Estimating cell-type fractions

In this work, we estimate the proportions of all main cell types within tissues from the TCGA using our validated EpiSCORE algorithm [44] and its associated DNAm atlas of tissue-specific DNAm reference matrices [43]. This atlas comprises DNAm reference matrices for liver (5 cell types: hepatocytes, cholangiocytes, endothelial, Kupffer, lymphocytes) and lung (7 to 9 cell types: alveolar epithelial, basal, other epithelial, endothelial, granulocyte, lymphocyte, macrophage, monocyte, and stromal). EpiSCORE was run on the BMIQ-normalized DNAm data from the TCGA with default parameters and 500 iterations. In the kidney tissue datasets (KIRC/ccRCC), we applied the HEpiDISH DNAm reference matrix, defined over a generic epithelial, fibroblast, and immune cell. This was done because the EpiSCORE kidney DNAm reference matrix was not extensively validated. We benchmarked the HEpiDISH DNAm reference matrix with another one built directly from the WGBS DNAm-atlas of Loyfer et al. [63], encompassing 4 broad cell types (epithelial, endothelial, fibroblast, and immune cell). Briefly, this latter DNAm reference matrix was built by identifying highly cell-type-specific genes, following our previous procedure [35]. First, we summarized DNAm values at the level of gene promoters demanding at least 10 read coverage per CpG promoter. For the immune cells, we had a total of 47 subtypes. For endothelial cells, we took the endothelials profiled in kidney and pancreas, yielding a total of 10 endothelial samples. For fibroblasts, we took all 7 available fibroblast samples. For the epithelial-cell component, we took the 8 available kidney podocyte samples. Subsequently, we performed limma to identify genes significantly hypomethylated in one cell-type compared to the other 3, selecting those with FDR < 0.05, and ranking them by average difference in DNAm. We selected the top-50 for each cell type, resulting in a 174 gene × 4 cell-type DNAm reference matrix.

Other prognostic stratifications of LIHC

We used the 96 CpG DNAm signature from Ganxun Li et al. [64] to classify TCGA LIHC samples into 3 subgroups, following the procedure of their paper. Briefly, we performed consensus clustering (ConsensusClusterPlus) of the DNAm profiles over the 96 CpGs, reproducing the 3-cluster solution, and marking the hypermethylated group as the predicted poor prognosis group. A separate mRNA-expression prognostic classification of LIHC was presented by Hoshida et al. [65], which identified 3 subgroups with 2 displaying significantly poor prognosis. To reproduce the Hoshida classification, bulk mRNA expression profiles of TCGA LIHC tumors were clustered using ConsensusClusterPlus using the provided prognostic expression signatures for the 3 subtypes, but this resulting in an optimal 2-cluster solution with well-defined predicted poor and good outcome groups. Boyault et al. [66] proposed another 6 subtype classification based on expression data from 5 sets of marker genes (G1, G2, G3, G5, and G6). Here, we used ConsensusClusterPlus to cluster the TCGA LIHC samples over these genes, which resulted in an optimal 3 cluster-solution. The iCLUSTER classification annotations for TCGA LIHC samples are provided in the supplementary material (downloaded from https://ars.els-cdn.com/content/image/1-s2.0-S0092867417306396-mmc1.xlsx) from The Cancer Genome Atlas Research Network, and the Immune classification annotations for TCGA LIHC samples are provided in the supplementary material (downloaded from https://ars.els-cdn.com/content/image/1-s2.0-S1074761318301213-mmc2.xlsx) by Thorsson et al. [16].

Comparing different prognostic models in LIHC

To formally test that the CELTYC prognostic model defined by lymphocyte-specific DMCTs (LC2 vs LC1 + 3) is a better prognostic model than the ones defined by other methods, we used a likelihood-based strategy that estimates relative probabilities for the respective models being true [67]. First, we compute the Akaike Information Criterion (AIC) values for each model m:

$$AIC\left(m\right)=-2\text{log}L\left(m\right)+2*n(m)$$

where L(m) is the model partial likelihood (derived from the Cox regression) and n(m) is the number of parameters of model m. Since in this case, all models have the same number of parameters, we can ignore this term. Then, for two models k and j we define

$$B\left(m\right)={e}^{(\text{min}\left(AIC\left(k\right),AIC\left(j\right)\right)-AIC\left(m\right))/2}$$

where m can be either k or j. Finally, the relative probability of the two models being true is given by

$$p\left(m\right)=\frac{B(m)}{B\left(k\right)+B(j)}$$

For instance, for the lymphocyte-specific CELTYC model (LC), its relative probability of being true relative to the model defined by Hoshida clusters (HSD), would be:

$$p\left(LC\right)=\frac{B(LC)}{B\left(LC\right)+B(HSD)}$$

and thus 1-p(LC) can be viewed as the probability that the HSD-model (null-model) is a better model.

Construction and validation of the mRNA expression CELTYC classifier (LIHC)

We built an mRNA-expression-based predictor to classify mRNA expression profiles into one of the two CELTYC prognostic subgroups, defined as the 2 main clusters obtained using lymphocyte specific DMCTs, i.e., we assigned a sample to good-outcome (Gclust) if it was part of LC2, or poor outcome (Pclust) if it was part of LC1/LC3. Using the assignment of the 373 LIHC TCGA tumor samples into poor- and good-outcome groups encoded as 1 and 0 respectively, we trained a logistic lasso model with glmnet as follows. First, the expression profiles for each gene were scaled to unit variance. To select the optimal penalty parameter (lambda) value, we implemented a nested tenfold cross-validation [68]. This procedure involved splitting the samples into 10 folds. Using 9 folds, a series of logistic lasso models with 500 lambda values ranging from 0 to 0.1 were trained and finally tested on the leave-out bag. This was repeated 9 times so that each fold was used for testing exactly once. For each fold, we recorded the predicted values and for each choice of the 500 different lambda values. For each lambda value, we then concatenated the scores (predicted probabilities) of all folds, and computed an AUC value with R package pROC. The lambda value with the greatest AUC was selected as the optimal parameter to retrain a final logistic lasso model using all TCGA LIHC samples.

Validation of the CELTYC lasso mRNA expression predictor

We validated the lasso predictor of clinical outcome in two independent LIHC mRNA expression datasets [69, 70]. Normalized expression data for 100 HCC samples (GSE16757) [71] and 246 HCC samples (GSE14520) [72] were downloaded from GEO. The GSE16757 expression data was processed on Illumina BeadStudio software and normalized using quantile normalization and log2 transformation, while the GSE14520 expression data containing samples from 2 cohorts was processed with the matchprobes package and the RMA method in the R affy package, followed by log2-transformation. Gene expression profiles for genes in our lasso predictor were scaled to unit variance. Using the estimated regression coefficients beta from the optimal lasso logistic model, we then calculated the linear predictor scores (LP), i.e., X*beta + intercept, and finally transformed the scores to probabilities of belonging to poor outcome class, using exp(LP)/(1 + exp(LP)). Cox regressions were performed correlating the predicted probabilities to overall survival. For the Kaplan–Meier analysis, we defined samples with the upper and lower 25% quantile probability scores as “poor outcome” and “good outcome,” respectively. We also performed Cox regressions after merging the predicted probabilities of both datasets and merging the predicted groups of both datasets.

Somatic mutational and copy-number variation data of TCGA LIHC tumors

Masked somatic mutation data for LIHC was downloaded with TCGAbiolinks Bioconductor R-package. For each gene, samples with any of the following mutation types (missense mutation, silent mutation, frameshift deletion, in-frame deletion, frameshift insertion, intron mutation, 3’ UTR mutation, splice-site mutation, nonsense mutation, and splice-region mutation) were encoded as 1, otherwise encoded as 0. Fisher exact tests were then performed to identify genes with significantly different mutation frequency between the 2 CELTYC subgroups of different prognosis. We identified the survival associated genes from the ones with different mutation frequency between CELTYC subgroups by running Cox regressions of mutational profiles against survival, and incorporated the survival associated genes with CELTYC subgroups in a multivariate Cox regression to see whether the CELTYC classification is independent of mutational profiles.

Gene level copy number data of around 56k genes for TCGA LIHC was downloaded with TCGAbiolinks package. For each gene, samples with loss or deletions (i.e., copy number < 2) were encoded as 1, otherwise encoded as 0 (i.e., copy number ≥ 2) and the Fisher exact tests were performed to see whether the deletion/loss incidence for each gene is significantly different between the two CELTYC subgroups. An analogous analysis was done for gain/amplification.

Construction and validation of the DNAm CELTYC Epi and IC classifiers (KIRC)

Clustering over the epithelial specific DMCTs resulted in an assignment of KIRC samples into one of 3 clusters, labeled by an ordinal integer (1,2,3) with 3 and 1 labeling the poor and good outcome clusters, respectively. A similar clustering-scheme was obtained for the immune-cell-specific DMCTs. We then used an elastic net (alpha = 0.5) classifier (glmnet R-package) with a fivefold cross-validation strategy to build a DNAm-predictor of the cluster labels, treating it as an ordinal variable and optimizing the root-mean-square error (RMSE). The training and testing of the predictor was done on the residual matrix obtained after regressing out the effect of cell-type fractions and defined over the respective cell-type-specific DMCTs. Of note, since these DMCTs were inferred by comparing cancer to normal tissue, it is legitimate to then train the predictors of CELTYC clusters over these DMCTs, since this training is only done over cancer samples. When implementing the fivefold CV, we ensured that folds had proportional numbers of cancer samples belonging to each cluster. Optimal penalty parameter was tuned on the combined left-out sets. For validation, we used an independent Illumina 450k DNAm dataset of 115 ccRCC samples [59, 60]. Before applying the Epi and IC-predictors, we estimated epithelial, fibroblast and immune-cell fractions in the independent dataset, generating residuals after regressing out the effect of these cell-type fractions. The scores from the Epi and IC-predictors were then assigned to 3 clusters by ranking the scores and using the same quantiles inferred from the training set.

Cell-proliferation index and mitoticage

The cell proliferation index was computed from the RNA-Seq data of the LIHC samples and measures the instantaneous rate of cell proliferation of the tumor. It was computed using a set of cell proliferation genes by z-scoring their values and then averaging over them, as described by us previously [73]. Mitotic age of a tumor sample is an estimate of the total cumulative number of stem-cell divisions of a tissue and is computed from DNAm data. Here we applied our epiTOC2 mitotic age clock [74] to the KIRC samples. epiTOC2 yields estimates for both the total number of stem-cell divisions (TNSC) (age-dependent) and the average lifetime intrinsic rate of stem-cell division (irS) (which is naturally age-adjusted).

Overrepresentation and Gene Set Enrichment Analyses

LIHC

To test for enrichment overrepresentation of cell-type-specific hypermethylated and hypomethylated DMCTs in LIHC, we used the web-based tool eFORGE [75]. We also performed GSEA [76, 77] for genes ranked by upregulation in the poor outcome CELTYC cluster using the clusterProfiler R-package [78] focusing on the MsigDB Hallmark gene set. With bulk RNA-Seq data and the barcodes which could be matched to methylation data, DEGs were identified between Pclust and Gclust by applying Limma on bulk RNA-Seq data, adjusting for age, sex, and cell-type fractions. The DAVID webtool [79, 80] was run on genes whose expression correlated with poor outcome according to Cox-regression analyses adjusted for cell-type fractions.

KIRC

We performed enrichment overrepresentation analysis focusing on genes containing epithelial, fibroblast, and immune-cell specific cancer-DMCTs, stratified according to up- or downregulation in cancer vs normal tissue (adjusted for cell-type fractions). Only genes with FDR < 0.05 were selected. If number was larger than 250, the top-250 were used. Overrepresentation analysis was performed using a one-tailed Fisher’s exact test, as implemented in ebGSEA [81]. We also performed ebGSEA on the top-250 genes whose expression correlates positively and negatively with the CELTYC clusters, adjusted for cell-type fractions. Both overrepresentation analyses were done using the Cancer Hallmark gene set collection from MSigDB [77].

BRCA

We performed enrichment overrepresentation analysis using ebGSEA and MSigDB as described for KIRC, using the cancer hallmark, cell-type, and immune-cell signature collections.

Cytokine activity scores

We used a large compendium of cytokine stimulation signatures from the Immune Dictionary [82]. Briefly, these are perturbation mRNA signatures obtained from scRNA-Seq data, where specific immune cell types were stimulated with a variety of cytokines. A total of 938 cytokine-response signatures are available encompassing 17 immune cell types with a mean of 55 cytokines tested for each cell type. Cytokine signatures were first filtered by the requirement that they contain at least 10 upregulated genes with representation in the TCGA LIHC and KIRC RNA-Seq datasets. Of note, the genes in the RNA-Seq datasets were first z-score normalized; hence, we required that genes be expressed in at least 10% of all samples, to avoid singularities/outliers with zero or ultra-low variance. The requirement that cytokine signatures should have at least 10 upregulated genes, resulted in reduced sets of 342 and 333 cytokine signatures for the LIHC and KIRC RNA-Seq datasets, respectively. Subsequently, a cytokine activity score for each sample was computed by averaging the z-score normalized expression of all upregulated cytokine signature genes. This score was then correlated to CELTYC clusters or clinical outcome.

Identification of cell-type-specific cancer associated differentially expressed genes

We applied CIBERSORTx [83] via the CIBERSORTx webtool (https://cibersortx.stanford.edu/) on the LIHC expression data to identify cell-type-specific differentially expressed genes. The gene expression reference matrix defined over 658 marker genes for 5 cell types (cholangiocytes, endothelial, hepatocytes, Kupffer cells, lymphocytes) obtained from R package EpiSCORE was input as the “signature matrix” for CIBERSORTx. CIBERSORTx group-mode imputes average values of cell type-specific gene expression profiles for each gene in each individual cell type from a group of bulk tissue expression profiles, and outputs the corresponding standard error values for each gene. Therefore, to identify cell-type-specific cancer associated DEGs, we ran group-mode CIBERSORTx with expression data for LIHC cancer samples and normal samples separately. Z-statistics and P values were then calculated using the output average expression values and standard errors for the two groups to identify significant DEGs.

Combinatorial clustering/indexing and prognostic synergy in KIRC

Given the clusters inferred from cell-type-specific DMCTs, combinatorial clustering or indexing refers to the construction of new clusters made up of the various combinations of cell-type-specific clusters. For instance, for two cell types, each predicting 3 clusters, combinatorial clustering leads to 9 clusters. To formally test that a Cox-regression model against the 9 clusters (categorical variable, 8 degrees of freedom) is a better prognostic model than the ones defined by each of the cell-type-specific clusters (2 degrees of freedom), we used a likelihood ratio test (LRT), i.e., a one-tailed chi-square test with 6 degrees of freedom. For the case where we treat specific clusters in the combinatorial model as ordinal (thus a model with only 1 degree of freedom), we cannot use a LRT test, because each of the cell-type-specific clusters, if treated as ordinal, also defines models with only 1 degree of freedom. Hence, in this case we derive relative probabilities for the respective models, as follows: First, we compute the Akaike Information Criterion (AIC) values [67] for each model m:

$$AIC\left(m\right)=-2\text{log}L\left(m\right)+2*n(m)$$

where L(m) is the model likelihood and n(m) is the number of parameters of model m. Since in the ordinal case, all models have the same number of parameters to be inferred, we can ignore this term. Then, for two models k and j we define

$$B\left(m\right)={e}^{(\underset{\phantom{0}}{\text{min}}\left(AIC\left(k\right),AIC\left(j\right)\right)-AIC(m))/2}$$

where m can be either k or j. Finally, the relative probability of the two models being true is given by

$$p\left(m\right)=\frac{B(m)}{B\left(k\right)+B(j)}$$

For instance, for the combinatorial ordinal cluster model (cmb), its relative probability of being true relative to the model defined by ordinal immune-cell (IC) clusters, would be:

$$p\left(cmb\right)=\frac{B(cmb)}{B\left(cmb\right)+B(IC)}$$

and so 1-p(cmb) can be viewed as the probability that the IC-model (null-model) is a better model.

Prognostic macrophage signature evaluation in KIRC

For the prognostic macrophage signatures [84], we computed prognostic scores by first z-normalizing the mRNA expression KIRC dataset, and then averaging the corresponding z-score profiles for the genes in the corresponding macrophage signatures. For the chemokine/cytokine signature, we thus averaged z-scores of CXCL8, CXCL2, CCL4, CCL3, CCL4L2, CXCL3, CCL3L3, CCL20, NFKB1, and IL1B. For the lysosomal signature, we averaged z-scores of CTSL, ASAH1, LGMN, LIPA, CTSD, and LAMP1. These scores were then correlated to overall survival with Cox-regression and the CELTYC ordinal clusters with a linear regression.

CELTYC application to RRBS breast cancer DNAm dataset

We downloaded the normalized RRBS METABRIC dataset [85, 86], with DNAm summarized at the gene promoter level. After mapping to Entrez gene IDs, we were left with a DNAm data matrix defined for 12,338 genes and 1710 samples. Overall sparsity was low at 3%, owing to the quality control procedure which removed samples with coverage less than 70%. The 3% missing values were imputed using impute.knn (k = 5) of the impute R package [57]. We further restricted the analysis to 231 normal-adjacent and 797 luminal ER + cancer samples. Cell-type fractions for 7 cell types (fibroblasts, fat, endothelial, lymphocytes, macrophage, luminal, and basal epithelial cells) were estimated using EpiSCORE’s DNAm reference matrix for breast. CellDMC was run comparing normal-adjacent to the 797 luminal ER + samples, and CELTYC subsequently applied to lymphocyte, endothelial, and luminal differentially methylated gene promoters. Mitotic age was estimated using epiTOC2 [74]. Survival analysis was performed with survival R-package.

Results

Cell-type-specific clustering to refine molecular classifications of cancer

We reasoned that if molecular profiles representing clinical samples are clustered without adjustment for the underlying cell-type heterogeneity, that this could lead to suboptimal or skewed classifications of disease that are overly influenced by sample variations in cell-type composition. To demonstrate this, we first devised a simulation model where we mixed together sorted immune-cell DNAm profiles (Methods, Additional File 1: fig.S1a). The mixtures were generated using Illumina 450k DNAm data from BLUEPRINT [33], representing sorted monocytes, neutrophils, and CD4 + T cells for each of 139 individuals. Cell-type proportions within mixtures were chosen from realistic estimates obtained in a tissue like blood, which we note results in significant variation in a given cell-type fraction across individuals (Methods,Additional File 1: fig.S1a). The simulation model further assumes that samples consist of two disease subtypes distinguished by differential DNAm at a well-defined set of CpGs, but only in one immune-cell type (monocytes) (Methods, Additional File 1: fig.S1a). We note that because in practice the sample subtype would be unknown, no supervised analysis is possible. With this simulation model, we thus asked if unsupervised clustering of the samples over the most variable CpGs would reveal the two molecular subtypes or not? SVD/PCA analysis clearly shows that the top PCs do not correlate with disease status, and a scatterplot of the top 2 PCs did not reveal segregation of samples by disease status (Additional File 1: fig.S1b-c). Instead, mixtures segregate according to the neutrophil fraction, as evidenced by a near-perfect correlation of PC1 with this cellular fraction (Additional File 1: fig.S1c). Clustering of the mixtures over the 1000 most variable CpGs also did not result in clusters associated with disease status (Additional File 1: fig.S1c). Thus, this highlights how CTH can mask putative disease-relevant subtypes. Although this analysis only considered sorted immune cell types, similar considerations would apply to solid tissues, where variations in underlying cell-type fractions are also substantial [12]. To see this, we applied our EpiSCORE DNAm-atlas [43] to 15 TCGA cancer types to estimate cell-type fractions in all tumor samples, revealing, in each cancer type, that top PCs correlate most strongly with variations in underlying cell-type fractions (Additional File 1: fig.S2). This suggests that current TCGA transcriptomic and epigenetic classifications are strongly influenced by variations in cell-type composition, potentially masking other, clinically more relevant, cancer subtypes.

Thus, to address this CTH challenge, we devised a computational strategy called CELTYC (cell-type specific combinatorial clustering) (Methods, Fig. 1). Given a data matrix defined over CpGs and samples, CELTYC begins by estimating cell-type fractions in each sample using an algorithm such as EpiDISH (if the tissue is blood) [35, 49], or the relevant tissue-specific DNAm reference matrix from the EpiSCORE DNAm-atlas [44, 87] (for solid tissue types) (Fig. 1a). These estimated fractions are then regressed out of the data matrix to construct the standardized residual variation matrix, reflecting data variation that is not caused by variations in cell-type composition (Methods, Fig. 1b). CELTYC then proceeds by running the CellDMC algorithm [38] to identify cancer-associated differentially methylated cytosines in each cell type (DMCTs) (Fig. 1c). CellDMC uses statistical interaction terms between the phenotype (i.e. normal/cancer status) and cell-type fractions to infer cancer-associated DNAm changes in each cell type [38]. Typically, this results in a partitioning of DMCTs into a group of DMCTs that is common to all cell types, other groups where DMCTs are only shared between specific cell types, and finally groups of DMCTs that only appear in one specific cell type (Fig. 1c). These partitions define separate data submatrices, defining the input for subsequent analysis. At this stage, CELTYC can be run in two different modes. In one mode, the submatrices defined above can be analyzed together or in combination using a statistical procedure called JIVE (Joint and Individual Variation Explained) [50, 51], that extracts out components of joint variation across all DMCT submatrices as well as components of individual variation that are unique to each cell-type or unique to specific combinations of cell types (Fig. 1d). Individual variation matrices represent unique variation only present in one cell type which can be further analyzed with unsupervised clustering for novel class discovery (Fig. 1e). Alternatively, in a second mode, one can perform an unsupervised clustering of the standardized residual matrix as defined over the DMCTs of the given cell type (Fig. 1f). The unsupervised clustering obtained with CELTYC run in either mode can thus reveal molecular subtypes defined by the DNAm changes in one particular cell type, which could be very distinct from the subtypes identified by unsupervised clustering over bulk tissue. Potentially, this could lead to improved prognostic models (Fig. 1g).

Validation of CELTYC and power calculation on simulated data

To validate CELTYC, we first considered a simulation model in lung tissue. We simulated 108 bulk lung tissue samples by mixing together 108 bronchial epithelial cell (BEC) Illumina 450k DNAm samples from Magnaye et al. [39, 40] with 139 sorted monocyte, 139 CD4 + T cell, and 139 neutrophil 450k DNAm samples from BLUEPRINT [33, 34] (Methods, Fig. 2a). To simulate disease-associated DNAm changes, we used the top 1000 differentially methylated cytosines (FDR < 0.05) derived by comparing the BECs of 71 asthma cases to 37 non-asthmatic controls [39]. Although these DMCs are related to a specific disease (asthma), their effect sizes are small and representative of those found in many other diseases, including cancer. The weights of the mixtures representing cell-type fractions were derived from realistic estimates inferred by applying EpiSCORE [43] to the large eGTEX lung-tissue DNAm dataset [45, 46] (Methods, Additional File 1: fig.S3a). Principal component analysis over the artificial mixtures confirmed that the top-PCs only correlated with variations in cell-type fractions and not with case/control status (Fig. 2b). Clustering over the most variable CpGs also did not reveal any segregation of samples by disease status (Additional File 1: fig.S3b). This, once again, highlights the need to adjust for CTH. Hence, we first estimated the cell-type fractions of the simulated mixtures using our lung DNAm reference matrix (Methods), which revealed excellent agreement with the true (known) fractions (Additional File 1: fig.S3c). Because on this dataset, the full conditional CellDMC model lacks power, we applied the marginal unconditional variant of CellDMC to infer disease-associated DMCTs (Methods). This revealed that most of the DMCTs occurred in BECs, as required, and that we could recover nearly 50% of the previously declared 1000 ground-truth disease-DMCs (Fig. 2c). Consequently, clustering the scaled residual variation matrix over these disease BEC-DMCTs revealed clear segregation by disease-status (Additional File 1: fig.S3d). Of note, ordinary DMC-analysis without adjustment for CTH would only have detected a very small fraction of disease-associated DMCs (Fig. 2c). Next, we extended the previous simulation model to perform a power calculation that would inform us on the required sample size for the CELTYC strategy to work. We devised a parametric resampling scheme to simulate larger datasets of cases and controls (Methods), revealing the need to consider datasets encompassing at least 400 samples, in order to achieve significant sensitivity under the full conditional CellDMC model (Fig. 2d).

CELTYC identifies prognostic hepatocellular carcinoma subtypes

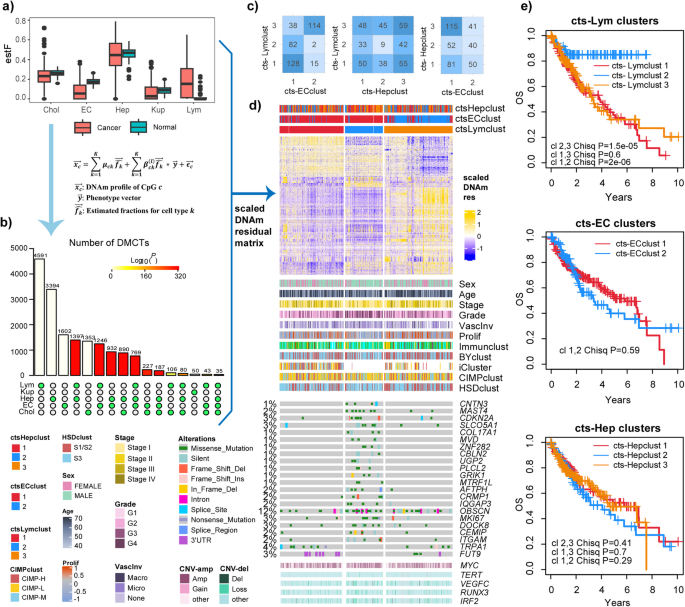

Based on the above power calculation, we thus applied CELTYC to cancer types with sufficient numbers of cases and controls and to corresponding tissues for which reasonably accurate cell-type fractions can be estimated. We first considered the liver hepatocellular carcinoma Illumina 450k DNAm dataset (LIHC, 50 normal-adjacent samples, 379 cancers) from the TCGA [88], because for liver tissue we had previously validated a DNAm reference matrix defined over 5 cell types (hepatocytes, cholangiocytes, endothelial cells, Kupffer macrophages, and lymphocytes) [43]. Applying EpiSCORE [44] with this liver DNAm reference matrix, we estimated fractions for the 5 liver cell types in all TCGA LIHC samples (Fig. 3a). We then applied CellDMC [38] to identify cancer-associated DMCTs (Fig. 3a, Additional File 2: table S1). Most changes were observed in lymphocytes (n = 4591), hepatocytes (n = 3394), and endothelial cells (n = 1602), with substantial overlaps between them (Fig. 3b). The number of cell-type-specific DMCTs (i.e., those not shared with any other cell type) was also largest for lymphocytes and hepatocytes, while the number of DMCTs unique to endothelial cells was much reduced (Additional File 1: fig.S4a). Next, we applied consensus clustering [52] to the standardized residual variation matrix defined over lymphocyte-DMCTs, and separately also for hepatocyte and endothelial-DMCTs, revealing inferred clusters that were broadly consistent between cell types (Additional File 1: fig.S4b). Effect sizes between clusters, as defined in the original unscaled basis, were typically in the range of 1–30% DNAm change for the hepatocyte-DMCT defined clusters, but generally much smaller for lymphocyte and endothelial-DMCT ones (Additional File 1: fig.S5). Importantly, the major inferred cell clusters for each cell type displayed a significantly different clinical outcome (Additional File 1: fig.S4c). To see which cell type may be driving the association with outcome, we repeated the clustering analysis but now restricting to cell-type-specific DMCTs (i.e., upon removing the overlapping DMCTs) (Fig. 3c,d), which revealed differences in clinical outcome only when clustering over lymphocyte-specific DMCTs (Fig. 3e), suggesting that lymphocyte-DMCTs drive the classification patterns in relation to LIHC prognosis. Very similar results were obtained had we used JIVE to decompose the residual variation matrices into joint and cell-type-specific components (Additional File 1: fig.S6).

Reflecting differences in clinical outcome, the good prognosis LC2 cluster (i.e., cluster-2 of lymphocyte-DMCT specific clusters in Fig. 3e) displayed lower proliferation (P = 0.018) and was predominantly low stage (stage 1 + 2) (P = 1e − 6) compared to the other two main clusters (LC1 + LC3) (Fig. 3d). On the other hand, LC2 was predominantly high grade (P = 2e − 7, Fig. 3d). While this may be surprising, it is worth noting that among all potential prognostic factors (i.e., age, sex, vascular invasion, tumor grade, stage, proliferation index, and the novel proposed LC clusters), only stage (P = 1e − 6), proliferation index (P = 4e − 6), and LC clusters (P = 5e − 6) were significantly correlated with clinical outcome according to a univariate Cox proportional hazard regression, with all these associations remaining significant in a multivariate Cox model including all three variables (Additional File 2: table S2). Thus, although the LC-classification from CELTYC correlates with proliferation and stage, it is also prognostically independent of these factors.

CELTYC improves prognostic stratification of LIHC

Clustering over lymphocyte-specific DMCTs led to an excellent prognostic stratification with LC2 displaying an 80% overall survival rate 8 years after diagnosis, with LC1 + 3 displaying a corresponding survival rate of less than 20% (Fig. 4a). Thus, we next asked if this classification could have been obtained by more standard means. The importance of including lymphocyte-specific DMCTs was evident because using all other DMCTs resulted in poor discrimination accuracy (Fig. 4b). To assess the importance of CELTYC, we re-clustered LIHC samples over cancer differentially methylated positions (DMPs, FDR < 0.05) adjusted for cell-type fractions, which did not result in clusters displaying different clinical outcome (Fig. 4c). Clustering LIHC samples over the 1000 most variable CpGs also did not lead to good prognostic separability (Fig. 4d). Thus, these data indicate that CELTYC is a critical element in driving the strong prognostic separability. Next, we asked if CELTYC’s model improves upon state-of-the-art prognostic models for LIHC. We compared prognostic stratification of CELTYC to previous LIHC classifications, including the integrative iClusters from the TCGA [88], the immune-cluster subtypes from Thorsson et al. [16], the CpG-island methylation phenotype subclasses [64], Hoshida’s mRNA-expression based classification [65], and Boyault’s subtypes [66] (Methods). Since the Hoshida, Boyault and CIMP classifications were not available, we computationally reproduced them (Methods,Additional File 1: fig.S7). The prognostic separability of all these previous classifications was lower than the one obtained with CELTYC (Fig. 4e–i). Consistent with this, we note that in general there was no strong overlap between our CELTYC classification and these previous ones (Fig. 3d,Additional File 2: table S3, Additional File 1: fig.S8). To formally prove that CELTYC’s prognostic model outperforms all other ones, we used a comparative likelihood-based strategy (Methods), which confirmed that CELTYC defines an improved prognostic model (Fig. 4j). Collectively, these results indicate that clustering over cell-type-specific DMCTs, which avoids confounding by variations in cell-type composition, can reveal novel and improved prognostic subtypes, otherwise hidden by such variation. To facilitate future applications of CELTYC’s prognostic model, we used tenfold cross-validation to derive a logistic Elastic Net DNAm-based predictor for the poor and good outcome CELTYC clusters (Additional File 2: table S4, Methods), achieving a significant hazard ratio (HR = 1.78, P = 5e − 06) in the cross-validation folds.

CELTYC’s prognostic subtypes validate in independent LIHC datasets

Although CELTYC’s prognostic classification was derived by unsupervised clustering over cancer-DMCTs and thus unlikely to represent a false positive finding, we nevertheless aimed to validate this prognostic classification in independent LIHC datasets. Due to lack of availability of other large LIHC DNAm datasets, we decided to validate the prognostic subtypes in LIHC mRNA expression data. To this end, we first applied a logistic lasso classifier on the TCGA LIHC mRNA expression samples to predict their good and poor outcome CELTYC assignments, using a tenfold CV-procedure to avoid overfitting (Methods, Additional File 1: fig.S9a, Additional File 2: table S5). We then applied this lasso-predictor to two independent LIHC mRNA expression datasets encompassing 100 and 247 hepatocellular carcinoma samples, respectively [69,70,71,72] (Methods). In both cohorts, the predicted poor and good outcome groups displayed significantly different overall survival (Additional File 1: fig.S9b, Additional File 2: table S6), with a prognostic separability similar to that observed in the TCGA cohort. Thus, this shows that the CELTYC prognostic model generalizes to independent cohorts and that it can be defined at the mRNA expression level. Interestingly, CELTYC’s prognostic model, which is inherently unsupervised, performed similarly to a supervised Elastic Net Cox-regression model trained against overall survival on the TCGA data (Additional File 2: table S7).

CELTYC’s classification is independent of somatic mutations and CNVs

Having validated CELTYC’s prognostic model, we next asked how CELTYC’s classification relates to somatic mutations and copy-number variations (CNVs) (Methods). We identified 178 genes whose mutation frequency differed between good and poor outcome groups (Fisher exact test, P < 0.05), with the overwhelming majority (n = 176) displaying a lower mutation frequency in the poor outcome class. Only 2 genes (FUT9 and TRPA1) displayed more alterations in the poor outcome group (Fig. 3d), and for only 4 genes (FUT9, MUC6, MARVELD2, FER1L6) did the somatic mutational profile directly correlate with clinical outcome (Additional File 2: table S8). We verified that CELTYC’s prognostic model correlated with clinical outcome independently of these mutations, and that it also defined a stronger prognostic model than any mutational profile (Additional File 2: table S8). A total of 2796 genes displayed a significant difference in gain or deletion/loss frequency between good (LC2) and poor outcome (LC1 + 3) subtypes (Fisher exact test, P < 0.05), with the overwhelming majority displaying higher frequency of CNV changes in the good outcome group. For instance, 1497 genes displayed a higher frequency of deletion or loss in the good outcome group, including LIHC tumor suppressors RUNX3 [89] and IRF2 [90] (Fig. 3d). Among the genes with significantly different CNV frequencies between good and poor outcome clusters, a total of 618 genes were significantly associated with clinical outcome in univariate Cox-regression analysis, yet the CELTYC classification remained strongly prognostic when adjusting for any one of these (Additional File 1: fig.S10, Additional File 2: table S9). Overall, these results indicate that CELTYC’s classification is independent of somatic mutational or CNV profiles.

Epigenetic dysregulation of WNT signaling in poor outcome cluster

To shed light on the biological nature of CELTYC’s prognostic model, we first performed eFORGE analysis [75, 91] of cell-type-specific cancer-DMCTs stratified by hyper- vs hypomethylation. Although this revealed some specificity, for instance, hypermethylated DMCTs in cancer hepatocytes and hypomethylated DMCTs in cancer endothelial cells were enriched for the active TSS chromatin state as defined in liver and endothelial cells, respectively (Fig. 5a), this enrichment analysis was insufficient to shed light on the specific prognostic stratification inferred with CELTYC. We reasoned that epigenetic alterations may have complex downstream effects on gene-expression and hence that performing GSEA [76, 77] on genes ranked by differential expression between CELTYC’s poor and good outcome clusters would be more fruitful. This revealed enrichment of pathways well-known to impart a poor outcome, including EMT, TGF-beta signaling, and angiogenesis (Fig. 5b). Differentially expressed genes (DEGs) between the poor and good outcome clusters also contained a significantly higher number of DMCTs than what would have been expected by random chance (Additional File 1: fig.S11a). To see which DMCTs within DEGs were associated with the gene’s mRNA expression level, we performed correlation analysis over the tumors, revealing a significant number of correlated and anti-correlated DMCT-DEG pairs (Additional File 1: fig.S11b), with the corresponding DMCTs mapping significantly more often to either gene-body or to within 200 bp upstream of the gene’s transcription start site (Additional File 1: fig.S11c). Gene over-representation analysis using DAVID [92] revealed marginal enrichment of biological terms related to membrane trafficking, cell-cycle, mesothelioma, pluripotency, hepatocellular carcinoma, and WNT signaling (Additional File 1: fig.S11d, Additional File 2: table S10). It is striking that among 4 enriched genes (FZD1, LRP5, AKT2, AXIN1) implicated in both mesothelioma and stemness (Additional File 1: fig.S11e), three of these (FZD1, LRP5, AXIN1) are key members of the canonical WNT signaling [93,94,95] pathway, one of the key pathways whose activation has been associated with increased stemness and aggressive liver cancer [93]. Moreover, AKT2 has been shown to regulate WNT signaling [96,97,98,99]. Joint heatmaps of DNAm and mRNA expression confirmed upregulation of these genes in the poor outcome cluster, with corresponding DMCTs also displaying differential DNAm (Additional File 1: fig.S11e). Several of these genes’ mRNA expression levels were also associated with clinical outcome when assessed individually with Cox-regressions (Additional File 2: table S11). Of note, downstream WNT signaling pathway members CTNNB1 and AXIN1 were more frequently mutated in the good outcome cluster (CTNNB1 Pclust:0.23, Gclust:0.34, AXIN1: Pclust:0.07, Gclust:0.08), although differences were not statistically significant. Likewise, CTNNB1 and AXIN1 did not display significantly different deletion/loss frequency (CTNNB1 Pclust:0.02, Gclust:0.04, AXIN1 Pclust: 0.13, Gclust: 0.13) or amplification/gain frequency (AXIN1 Pclust:0.33 Gclust:0.24. CTNNB1 Pclust:0.36 Gclust:0.41), pointing toward the poor outcome phenotype being driven in part by epigenetic dysregulation of WNT signaling.

A cytokine secretion signature is associated with CELTYC’s poor outcome cluster

Activated WNT signaling has been linked to increased stemness and immune evasion, promoting a more aggressive hepatocellular carcinoma phenotype [100, 101]. To explore in more depth the relevance of the immune-system component, and given the growing importance of epigenetically associated immune modulation in the tumor microenvironment [16, 102,103,104], we calculated cytokine-activity scores for cytokine signatures from the “Immune Dictionary” [82], a large compendium of 938 immune cell-type-specific cytokine-response expression signatures derived from single-cell RNA-Seq data, encompassing 17 immune-cell types and 86 cytokines (Methods). This revealed 55 cytokine signatures (adjusted linear model P < 0.05) correlating with the CELTYC clusters, with all 55 displaying increased activity in the poor outcome cluster. Of these 55 signatures, a total of 6 (ILC_TRAIL, cDC2_IL33, Macrophage_IL1a/IL7/TNFa and B-cell_41BBL) were also significantly correlated with overall survival (adjusted Cox-regression P < 0.05) (Fig. 5c). Of note, conventional type-2 dendritic cells (cDC2) are thought to be key regulators of inflammation and IL33 has generally been associated with activation of poor outcome type-2 immune responses (e.g., T-helper-2) [105]. A signature measuring TRAIL (TNFSF10) stimulation in innate lymphocyte cells (ILCs), a subset of highly interactive tissue-resident lymphoid cells that regulate chronic inflammation and tissue homeostasis [106, 107], was also associated with poor outcome. Resistance of liver cancer cells to apoptosis by TNFSF10, with TNFSF10 also promoting metastasis, has recently been documented [108, 109], which could partly explain the association with poor outcome found here. Moreover, TNFSF10 has been shown to induce a cancer cytokine secretome [109], and in line with this, gene set overrepresentation analysis with DAVID [92] revealed a strong enrichment for a secretory phenotype among genes negatively associated with clinical outcome (Fig. 5d). Average expression of these secretory factors was strongly associated with clinical outcome and higher in the poor outcome CELTYC cluster (Fig. 5e,f). Using CIBERSORTx [83] to identify cell-type-specific differential expression [110], in this instance, lymphocyte-specific DEGs, we were able to confirm enrichment of secretory and T-helper-2 pathways (Additional File 1: fig.S12). In summary, these data show that CELTYC’s prognostic clusters may in part be driven by a complex cancer cytokine secretome that promotes a type-2 immune response environment.

CELTYC reveals cell-type-specific prognostic subtypes in kidney cancer

To demonstrate that CELTYC can reveal novel subtypes in other cancer types, we considered the case of kidney renal carcinoma (KIRC), a cancer type for which a large number of normal-adjacent and cancer samples were profiled as part of the TCGA (n = 160 normal-adjacent + 319 cancers) [111]. To estimate cell-type fractions in the KIRC samples we applied our validated HEpiDISH DNAm reference matrix, defined over a generic epithelial, fibroblast, and immune cell type [12] (Additional File 1: fig.S13a-b). To independently check that these fractions are reasonable, we compared them to those obtained using a separate DNAm reference matrix built from a recent WGBS DNAm-atlas [63] (Methods), which resulted in an excellent agreement for the shared epithelial and immune cell components (Additional File 1: fig.S13c). Applying CellDMC with the estimated cell-type fractions, we inferred epithelial, stromal (fibroblast), and immune-cell-specific DMCTs (Additional File 2: table S12), with the overwhelming majority of changes occurring in the epithelial compartment (Fig. 6a). We verified that clustering over these DMCTs resulted in segregation of samples by normal-cancer status (Additional File 1: fig.S13d). Next, we clustered the cancer samples only, doing so separately over the epithelial, fibroblast, and immune-cell specific DMCTs. In the case of epithelial-DMCTs, this revealed 4 optimal clusters that showed some correlation with the clusters obtained over fibroblast and immune-cell DMCTs, but which were however also clearly distinct (Fig. 6b). Effect sizes between clusters, as defined in the original unscaled basis, were typically in the range of 1–30% DNAm change for all DMCT defined clusters (Additional File 1: fig.S14). Kaplan–Meier analysis revealed that for all cell types, clusters differed strongly with respect to overall survival (Fig. 6c). To explore this further, we collapsed the clusters for each cell type into 3 groups of good, intermediate, and poor outcome (Fig. 6d), based on their original KM-curve distributions (Fig. 6c). Although age, stage, grade, and residual tumor were each strongly associated with poor outcome (Additional File 2: table S13), for the fibroblast and immune-cell-derived CELTYC clusters the associations with overall survival remained significant upon adjustment for all of these factors (Additional File 2: table S13). Importantly, a prognostic model built from all 3 cell-type-specific clusterings significantly outperformed one based on clusters derived from ordinary differentially methylated cytosines (DMCs) (Likelihood ratio test, 2 dof, P < 6e − 6). This demonstrates that a reductionist cell-type-specific approach can improve prognostic stratification of KIRC compared to cell type agnostic clustering.

To study the biological significance of these KIRC subtypes, we first performed an enrichment overrepresentation analysis [81] of genes containing cell-type-specific DMCTs that are also significantly up- or downregulated in cancer compared to normal-adjacent tissue (Methods). Testing enrichment against the highly curated cancer-hallmark set from MSigDB [76, 77] revealed in the case of epi-DMCT genes upregulated in cancer, a strong enrichment for bivalent genes, inflammatory response, glycolysis, hypoxia, activated KRAS signaling, and EMT (Additional File 1: fig.S15a). In contrast, downregulated genes were only enriched for bivalent and PRC2 genes, and deactivated KRAS-signaling (Additional File 1: fig.S15a). The differentially expressed fibroblast-DMCT genes displayed less enrichment, but higher enrichment of the complement pathway, while the immune component displayed no enrichment due to the lower number of DMCTs in this compartment (Additional File 1: fig.S15a). The observation that downregulated genes with underlying differential DNAm changes in the epithelial compartment are enriched for bivalent and PRC2 targets, points toward cell proliferation as the underlying mechanism since PRC2 targets are prone to promoter DNA hypermethylation changes following cell division [112, 113]. The concomitant enrichment for KRAS-signaling and glycolysis further points to specific oncogenic sources of increased proliferation. To explore this further, we reasoned that the CELTYC epithelial-DMCT clusters may be related to the mitotic age of the tissue [74, 112]. Estimating the mitotic age of all samples using epiTOC2, a DNAm-based mitotic clock [74], showed an increased mitotic age in KIRC compared to age-matched normal-adjacent tissue (Additional File 1: fig.S15b), and confirming our hypothesis, mitotic age displayed a strong correlation with the 3 CELTYC Epi-clusters and clinical outcome (Fig. 6e). Interestingly, while the CELTYC Fib-clusters also displayed a linear correlation with mitotic age, the pattern was non-linear for the IC clusters, with an increased mitotic age only evident for the poorest outcome IC cluster (Additional File 1: fig.S15c). Since prognostic separability was highest in the fibroblast and immune-cell compartments (Fig. 6d) and in order to gain more power in our enrichment analysis, we performed differential expression analysis by identifying genes whose expression correlates most strongly with the corresponding CELTYC clusters graded by clinical outcome (Methods). While this revealed similar enrichment patterns for the Epi-clusters, a striking observation was the enrichment of IL2-STAT5 signaling, specifically for genes downregulated in the poor outcome IC clusters (Fig. 6f). This enrichment was driven by 11 genes that are activated by STAT5 upon IL2-stimulation (BCL2, CDC42SE2, GBP4, IRF6, ITGA6, LRRC8C, PLPP1, PRKCH, RHOB, SHE, SWAP70) [77]. We verified that all 11 displayed significant associations with overall survival (Additional File 2: table S14), with low average expression conferring poor outcome (HR = 1.65 with 95%CI 1.40–1.95, P = 10⁻⁹, Fig. 6f). We also computed cytokine activity scores for 333 signatures from the Immune Dictionary compendium [82] that had sufficient gene-representation in the TCGA data (Methods), observing how associations were strongest for the CELTYC immune-cell and fibroblast clusters (Additional File 1: fig.S16a, Additional File 2: table S15, Fig. 6g). Almost all associations were positive, i.e., high cytokine-activity correlates with poor outcome clusters and overall survival (Fig. 6g, Additional File 1: fig.S16a). Interestingly, while the strongest cytokine associations with the CELTYC immune cell clusters generally mapped to T cell lymphocyte subtypes (e.g., IL2 on CD8 + T cells), the opposite was true for the associations with the epithelial clusters which were dominated by myeloid cells (e.g., dendritic cells, macrophages) (Fig. 6g, Additional File 1: fig.S16b). We verified that all three cell-type-specific prognostic models were independent of recent single-cell RNA-Seq-derived prognostic macrophage signatures [84] (Additional File 1: fig.S17, Methods). That increased IL2 activity in CD8 + T cells is associated with poor outcome (Fig. 6g) could be consistent with recent reports that IL2 acts to induce CD8 + T cell exhaustion within tumor microenvironments [114] and that CD8 + T cell exhaustion is a key factor underlying metastasis and poor outcome [26]. Overall, these data indicate how CELTYC can dissect poor clinical outcome into separate epithelial and immune-cell components, reflecting increased mitotic age and altered cytokine signaling, respectively. Of note, by applying JIVE to extract joint and cell-type-specific variation matrices, we observed that inferred consensus clusters displayed greatest prognostic separability for the joint variation (Additional File 1: fig.S18). This suggests that, although we have identified distinct cell-type-specific prognostic subtypes, there are complex coordinated functional epigenetic changes between cellular compartments.

Prognostic synergy and validation in KIRC

Since CELTYC has been able to dissect mitotic age and IL2-STAT5 signaling, both associated with poor outcome, into their underlying cellular compartments, we next asked if these two processes may synergize to yield stronger prognostic models. To this end, we performed combinational clustering, i.e., we stratified all KIRC samples into 9 groups based on the CELTYC epithelial (Epi1, Epi2, Epi3) and immune-cell (IC1, IC2, IC3) clusters and generated KM-curves for each (Fig. 7a). This revealed strong synergy, in the sense that those samples with highest mitotic age (Epi3) and lowest IL2-STAT5 signaling (IC3) had the worst clinical outcome, whereas samples with lowest mitotic age and highest IL2-STAT5 signaling (Epi1-IC1) displayed the best outcome. Stratifying all KIRC samples into these two subgroups and the rest revealed an approximately 70% difference in overall survival 10 years after diagnosis (Fig. 7b). The odds ratio of a death event in the Epi3-IC3 group compared to Epi1-IC1 was 68 (Fisher test P = 4e − 10). To formally test for prognostic synergy, we performed likelihood-ratio tests comparing the prognostic model defined by combinatorial clustering (Fig. 7a) to the ones defined separately by the epithelial and immune-cell clusters (Methods), revealing that the combinatorial model significantly improved prognostic stratification (Fig. 7c). Prognostic synergy was also seen when comparing the combinatorial ordinal clusters (Fig. 7b) to the ordinal epithelial and immune cell clusters (Fig. 7c, Methods).

To test whether this prognostic synergy is also seen in independent cohorts, we first applied a fivefold cross-validation strategy to build linear Elastic Net [115] DNAm-predictors for the epithelial and immune-cell CELTYC clusters, using only the corresponding cell-type-specific DMCTs as input in the training process (Additional File 2: table S16-17, Additional File 1: fig.S19a, Methods). This resulted in two separate predictors for assigning samples to one of the 3 immune-cell or one of the 3 epithelial-cell CELTYC clusters (the IC-predictor and Epi-predictor). As required, the scores from these two predictors were correlated with clinical outcome in the TCGA KIRC samples (Additional File 2: table S18). To validate the predictors, we applied them to an independent Illumina 450k dataset [59, 60] of 132 clear-cell renal cell carcinomas (ccRCC) and 12 controls (Methods). Although exact overall survival information was not available for this cohort, samples were stratified into 3 separate categories (non-metastatic and progression-free, non-metastatic that progressed and metastatic at diagnosis), allowing for validation. Both the IC as well as the Epi-predictors yielded scores that increased with disease progression (Fig. 7d). Stratifying the ccRCC patients into nine separate prognostic groups according to their predicted IC and Epi-scores (Methods) revealed a significant differential distribution of metastatic events, especially when comparing the predicted poor outcome Epi3-IC3 cluster to the rest (Fig. 7e). Of note, none of the other Epi3 or IC3 clusters revealed a preponderance of metastatic events (Fig. 7e), supporting the view that it is simultaneous high mitotic age and low IL2-STAT5 signaling that drives poor outcome. In support of this, mitotic age of the ccRCC samples displayed a very strong correlation with the Epi-predictor and clinical outcome (Fig. 7f), and average DNAm of promoter CpGs mapping to IL2-STAT5 genes was also increased in the IC-3 cluster, albeit only marginally so (Additional File 1: fig.S19b). Overall, these data validate the synergistic poor-outcome effect of high mitotic age and low IL2-STAT5 signaling in KIRC.

CELTYC is applicable to large RRBS datasets

In the previous applications to LIHC and KIRC, the DNAm data had been generated with Illumina 450k beadarrays, which measures DNAm at the level of individual CpGs. To demonstrate that CELTYC can be applied to other technologies, we considered a large reduced representation bisulfite sequencing (RRBS) breast cancer dataset [85, 86] encompassing 1479 breast cancers and 231 normal-adjacent tissue specimens, and where the DNAm data has been summarized at the gene-promoter level (Methods). As proof-of-concept, we considered the case of luminal estrogen receptor positive (ER +) breast cancer, as this is the predominant subtype with 797 samples. We used our EpiSCORE DNAm reference matrix for breast tissue, encompassing representative DNAm profiles for basal, luminal, adipocytes, endothelial, fibrobast, lymphocyte, and macrophage cells, estimating corresponding cell-type fractions in all 1028 (231 + 797) samples (Additional File 1: fig.S20a). CellDMC predicted most cancer-associated cell-type-specific differential methylation (Additional File 2: table S19) to occur in the luminal compartment, followed by changes in endothelial cells and lymphocytes (Additional File 1: fig.S20b). DNAm changes in promoters displayed clear preferential hypermethylation in the luminal and lymphocyte compartments but preferential hypomethylation in endothelial cells (Additional File 1: fig.S20b). Because differentially methylated gene promoters (DMGs) largely overlapped between cellular compartments, for interpretability we next restricted to cell-type-specific DMGs, performing separate clustering over each cell-type-specific set of DMGs. Clustering over the luminal-specific DMGs led to an optimal 3-cluster solution that was prognostic, with two clusters mapping broadly to the luminal A and B subtypes, and with the third cluster displaying an intermediate outcome phenotype (Additional File 1: fig.S20c-d). Clustering over the endothelial cell and lymphocyte DMGs also led to prognostic models, but not outperforming the transcriptomic-based (lumA vs lumB) prognostic model. Although combinatorial clustering also did not reveal any improved prognostic models, we aimed to validate the cell-type-specific DMGs. In the case of the hypermethylated gene promoters occurring in the luminal compartment, these were once again strongly enriched for PRC2-marked and bivalent genes (Additional File 1: fig.S20e), similar to the pattern observed in the epithelial compartment of KIRC. We reasoned that the CELTYC luminal derived clusters could thus reflect differences in cell proliferation and mitotic age, which was validated by application of epiTOC2 (Additional File 1: fig.S20d), further confirming that a significant portion of the DNAm landscape in breast cancer is driven by cell proliferation [85, 116]. In contrast to the luminal compartment, the strongest enriched terms for lymphocyte-DMGs were enriched for immune cell signatures, including interferon alpha and gamma responses and CD4T cells, while for the endothelial compartment, we observed marginal enrichment for genes expressed in fetal endothelial cells [117] (Additional File 1: fig.S20d). Thus, although in this instance, CELTYC did not lead to prognostic models that outperform established ones, it does clearly identify prognostic signatures within individual cellular compartments, thus demonstrating that it is applicable to other cancer types and technologies.

Discussion

Here we have advanced the concept of cell-type-specific combinatorial clustering (CELTYC), demonstrating, in two different cancer types, how it can refine and improve prognostic cancer classifications. Conceptually, that such improvements should be possible is highly plausible, since current cancer classifications are generally speaking derived from bulk tissues that are composed of many different cell types, with the substantial inter-subject variations in tissue composition overly confounding or masking cell-type-specific prognostic associations. While cellular composition of tissues is also highly informative of disease subtypes and prognosis, the reductionist, cell-type-specific, CELTYC approach allows construction of improved prognostic models by combinatorial indexing of the cell-type-specific clusters, as shown here for KIRC. This in turn can also help elucidate the biological meaning of cancer subtypes. For instance, in the case of KIRC, CELTYC was able to correctly dissect and assign two distinct biological processes associated with poor clinical outcome (increased mitotic-age/cell proliferation and reduced IL2-STAT5 signaling), to the corresponding epithelial and immune-cell compartments, respectively. This allowed construction of a significantly improved prognostic model based on combinatorial indexing of the epithelial and immune-cell clusters, which is not attainable with standard methods that do not use cell-type deconvolution. Although we were able to validate the synergistic effect of high mitotic age and low IL2-STAT5 signaling in an independent ccRCC cohort, by no means are we arguing that there are no other immune-signaling axes contributing to poor outcome in KIRC. Indeed, application of the cytokine Immune Dictionary revealed many cytokine lymphocyte signatures contributing to poor outcome in KIRC, including, e.g., IL2 stimulation of NK and CD8 + T cells, or IL-7 stimulation of CD4 + , CD8 + , and $\gamma \delta$ T cells. Although IL2-signaling is normally associated with favorable outcome, IL2 can also amplify T regulatory cells [118, 119] and a recent study has implicated IL2 in stimulating CD8 + T cell exhaustion [114], with CD8 + T cell exhaustion emerging as the key marker of poor outcome in KIRC/ccRCC [26]. That low IL2-STAT5 and high IL2 T cell signaling are simultaneously associated with poor outcome KIRC samples may indicate a complex intricate rewiring of IL2-signaling, or alternatively, that the two IL2 signature states may not necessarily be operative in exactly the same poor outcome samples. Another interesting finding was the differential association of cytokine signatures across the immune and epithelial-cell compartments, with myeloid signatures almost exclusively associated with the mitotic-age clusters defined by epithelial-DMCTs. This may indicate an intricate paracrine signaling between poor outcome IL1, IL10, and IL36a macrophage polarization [120,121,122,123] and the proliferation-state of tumor cells, as demonstrated recently in the case of colon cancer [124].

The application of CELTYC to LIHC also led to an improved prognostic model, which was validated at the mRNA level in 2 independent LIHC datasets. Although the association with poor outcome was driven by lymphocyte-DMCTs, many overlapped with respective DNAm changes in the epithelial and endothelial cell compartments, suggesting highly consistent and coordinated epigenetic changes across cell types. Consistent with this, differentially expressed genes correlated with DMCTs were enriched for terms normally associated with a poor outcome including stemness and activated WNT signaling. The latter enrichment was particularly striking, involving not only the co-receptors FZD1 and LRP5, but also an element (AXIN1) of the beta-catenin destruction complex, as well as external regulators of WNT signaling such as AKT2 [96,97,98,99]. While the role of WNT signaling in hepatocellular carcinogenesis is well-known [93,94,95], with CTNNB1 and AXIN1 frequently mutated or amplified, it is worth stressing that these specific genomic alterations did not display variable frequencies between the poor and good outcome clusters, suggesting that other mechanisms are contributing to differential prognosis. In line with this, our work highlights the potential importance of differential DNAm in the gene-body or promoter of genes like FZD1, LRP5, AXIN1, and AKT2 contributing to the differential prognosis. We note that the identification of FZD1 and LRP5 is particularly interesting given earlier work demonstrating how epigenetic dysregulation of genes in cancer happens preferentially in the extracellular and membrane receptor domains, in contract to genetic dysregulation which preferentially targets intracellular domains [102]. Altered WNT signaling has also been linked to an altered immune tumor microenvironment and immune evasion [100, 101]. Cytokine signature analysis revealed the presence of 6 signatures that could potentially contribute to the poor outcome phenotype, alongside other well-known processes such as EMT and angiogenesis. Among the cytokine signatures, it is worth highlighting again the TNFSF10-CD8 + T cell stimulation signature, as targeted TRAIL (TNFSF10) therapy is being extensively explored in clinical trials [125]. Intriguingly, TRAIL has been associated with a tumor promoting secretory phenotype [109], and consistent with this GSEA revealed a highly significant enrichment of secretory proteins including matrix metalloproteinases. Interestingly, the same GSEA revealed an even stronger enrichment for genes with GAGE domains (cancer and testis-specific antigens), which have been implicated with metastasis and poor outcome in a range of different cancer types and are potential targets for immunotherapy [126, 127].

It is also important to discuss some of the theoretical implications regarding CELTYC. First, as far as mRNA expression is concerned, single-cell approaches on large numbers of clinical samples can more directly lead to cell-type-specific disease subtyping, as shown recently in the context of eQTLs [128]. For DNAm data, however, this is not going to be feasible in the foreseeable future, thus justifying the need for an algorithm such as CELTYC. However, to help realize the potential and value of CELTYC in the DNAm context, it is critical to have highly accurate tissue-specific DNAm reference matrices at high cellular resolution as well as sufficiently large DNAm datasets to ensure that algorithms such as CellDMC can capture most of the DMCTs in each underlying cell type. As shown here, EpiSCORE’s DNAm-atlas or the more coarse-grained HEpiDISH DNAm reference matrix can help dissect DNAm patterns into the DNAm changes displayed by different cell types, but the cellular resolution is still limited to a few cell types. We have estimated that one requires at least 400 samples, ideally with balanced numbers of normal and disease samples, to have enough sensitivity to detect a reasonable number of true-DMCTs in at least one or two of the different cell types in the tissue. Hence, larger DNAm datasets will be required to more reliably identify a larger set of DMCTs in three or more cell types.

A second theoretical consideration is whether CELTYC is best run in JIVE or non-JIVE mode. In the application to LIHC, both modes led to very similar findings, reflecting the fact that different cell types displayed a strong overlap of cancer-associated DNAm changes. On the other hand, in the context of KIRC, the resulting prognostic models were stronger when CELTYC was run in non-JIVE mode. As is common with the application of many other bioinformatic algorithms, their application benefits from considering a range of different input parameter values. With CELTYC we also recommend applying it in both modes, as each mode offers unique advantages. For instance, although JIVE’s output is far more complex and thus potentially harder to interpret, it can help disentangle DNAm variation that is common between cell types from DNAm variation that is unique to each cell type. We note that this not only applies to the actual CpGs that display differential DNAm in cancer, but also to the cancer samples themselves, since features displaying common or joint DNAm variation across cancer samples can nevertheless map to entirely different CpGs depending on cell type. Future work on larger DNAm datasets may help to further assess the value of JIVE within the CELTYC paradigm.

A final consideration is that our focus has been on DNAm data generated with Illumina 450k beadarrays and on running CELTYC at the level of individual CpGs. It is worth pointing out though that CELTYC is straightforwardly applicable to other DNAm technologies and for DNAm data summarized at the level of regulatory regions, as illustrated here for RRBS data and gene promoters. This demonstration was also performed in the context of a different cancer type (breast cancer). Although in the context of breast cancer, CELTYC did not reveal an improved prognostic model, this likely owes to the fact that RRBS data is restricted to gene promoters, which therefore misses the cancer-associated DNAm variation at distal regulatory regions, including cell-type-specific enhancers, that could play an important role in defining novel prognostic subtypes [129, 130]. Thus, to further realize the potential of CELTYC may require the adoption of scalable non-bisulfite-based technologies like CABERNET [30] that can deliver genome-wide coverage at a reasonable cost and level of sparsity. In future, it might also be interesting to extend CellDMC and CELTYC to infer cell-type-specific differentially methylated regions, which could lead to improved robustness over the inferences performed at the individual CpG level.

Conclusions

In summary, we have demonstrated that cell-type-specific combinatorial clustering of DNAm data can lead to distinct and improved prognostic models in cancer, shedding new biological insights and formulating new hypotheses regarding the molecular pathways driving these models. As such, we envisage that CELTYC will be of great value to uncover clinically relevant subtypes in other cancer types where cell-type heterogeneity would otherwise mask them.

Data availability

The Illumina DNA methylation datasets used here are freely available from the public repository GEO (www.ncbi.nlm.nih.gov/geo) under the following accession numbers: GSE213478 (eGTEX lung) [34], GSE40279 (whole blood) [37], GSE210843 (bronchial epithelial cells) [40], and GSE113501 (ccRCC + kidney controls) [46]. The two LIHC RNA-Seq datasets are freely available on GEO under accession numbers GSE14520 and GSE16757 [55, 56]. TCGA Illumina 450k datasets for LIHC and KIRC are available from the GDC data portal https://portal.gdc.cancer.gov/ [60, 71]. The BLUEPRINT DNA dataset of sorted immune cell types is available from EGA https://ega-archive.org/ under accession number EGAS00001001456 [72]. The breast cancer MetaBric RRBS dataset is available from https://tanaylab.weizmann.ac.il/metabric_rrbs [86]. The liver, kidney, and breast DNAm-reference matrices are freely available from the EpiSCORE and EpiDISH R-packages https://github.com/aet21/EpiSCORE [131] and https://bioconductor.org/ packages/release/bioc/html/EpiDISH.html [132]. R-functions for running the CELTYC algorithm are available from https://github.com/QL2024/CELTYC [133].

Abbreviations

LIHC:: Liver hepatocellular carcinoma
KIRC:: Kidney clear cell renal cell carcinoma
DMC:: Differentially methylated CpG sites
DMG:: Differentially methylated genes
DMCT:: Cell-type-specific differentially methylated CpG sites
RRBS:: Reduced representation bisulfite sequencing
